Prefabricated Electrochemical Rectifier Transformer | High Efficiency Industrial Power Solutions

Smelting, mining and electrochemical plants worldwide constantly face excessive power bills, frequent oil leakage, overheating coils and unexpected short-circuit shutdowns from outdated standard Industrial Transformers. Our Integrated Prefabricated Rectifier Transformer acts as Reliable Power Solutions to cut energy waste drastically. This Modular Electrochemical Rectifier Transformer integrates patented winding and tank tech, functioning as a durable Electrochemical Rectifier for Transformer core equipment, slashing both no-load and load loss for long-term operational cost reduction.

Beyond energy consumption pain points, harsh corrosive workshop environments and high noise pollution disrupt continuous production for overseas B-side manufacturers. Ordinary Rectifier Transformer models fail to balance anti-corrosion sealing and anti-short-circuit performance. Our prefabricated all-in-one system adopts fully optimized silicon steel core and zero zero-sequence loss coil structures, perfectly matching heavy-duty local electrochemical industrial operating standards without frequent maintenance downtime.

Parameter Item	Technical Standard	Localized Adaptation Explanation for Overseas Electrochemical Plants
Core Material	WISCO 27QG100 grain-oriented silicon steel, magnetic flux density ≤1.68T	Low-loss raw material cuts no-load loss by 10–20%, compliant with global carbon-neutral power consumption limits for smelting factories
Conductive Wire	Guilin International oxygen-free copper, current density ≤3.3A/mm²	Low current density design avoids coil overheating, adapts to long-hour non-stop operation of overseas electrolytic workshops
Temperature Rise	≤45℃	Far lower than industry average 55℃, reduces insulation aging in humid coastal electrochemical production bases
Operating Noise	50–60dB	Meets international industrial environmental noise control regulations for urban surrounding smelting projects
Energy Performance	No-load loss -10%, load loss 5–10% lower, impedance voltage -20%, power factor +10%	High Efficiency Transformer performance lowers monthly electricity expenditure, matching overseas factory energy-saving subsidy policies
Voltage Grade Support	Up to 110kV step-down custom design	Customizable per local grid voltage standards across Southeast Asia, Middle East, Africa metal smelting markets

What certifications can you provide for this Prefabricated Electrochemical Rectifier Transformer to meet local factory acceptance standards?

As a 38-year professional manufacturer of Industrial Transformers, we supply ISO9001 quality, ISO14001 environmental and CQC certificates for all Rectifier Transformer units. We can cooperate with third-party laboratories to complete IEC standard testing reports per your local market requirements. All Power Solutions we produce hold over 20 national patents covering winding, tank and leak-proof terminal structures, fully supporting overseas project bidding and factory inspection.

If you’re sourcing cost-effective, long-lifespan High Efficiency Transformer Power Solutions for your electrochemical, metallurgy or mining facility, our Prefabricated Electrochemical Rectifier Transformer is your ideal Industrial Transformers partner. Send us your project voltage, production capacity and local working condition requirements now to obtain free customized technical quotations, full performance parameter sheets and factory patent certification files. Our professional international engineering team will reply to your inquiry within 24 working hours.

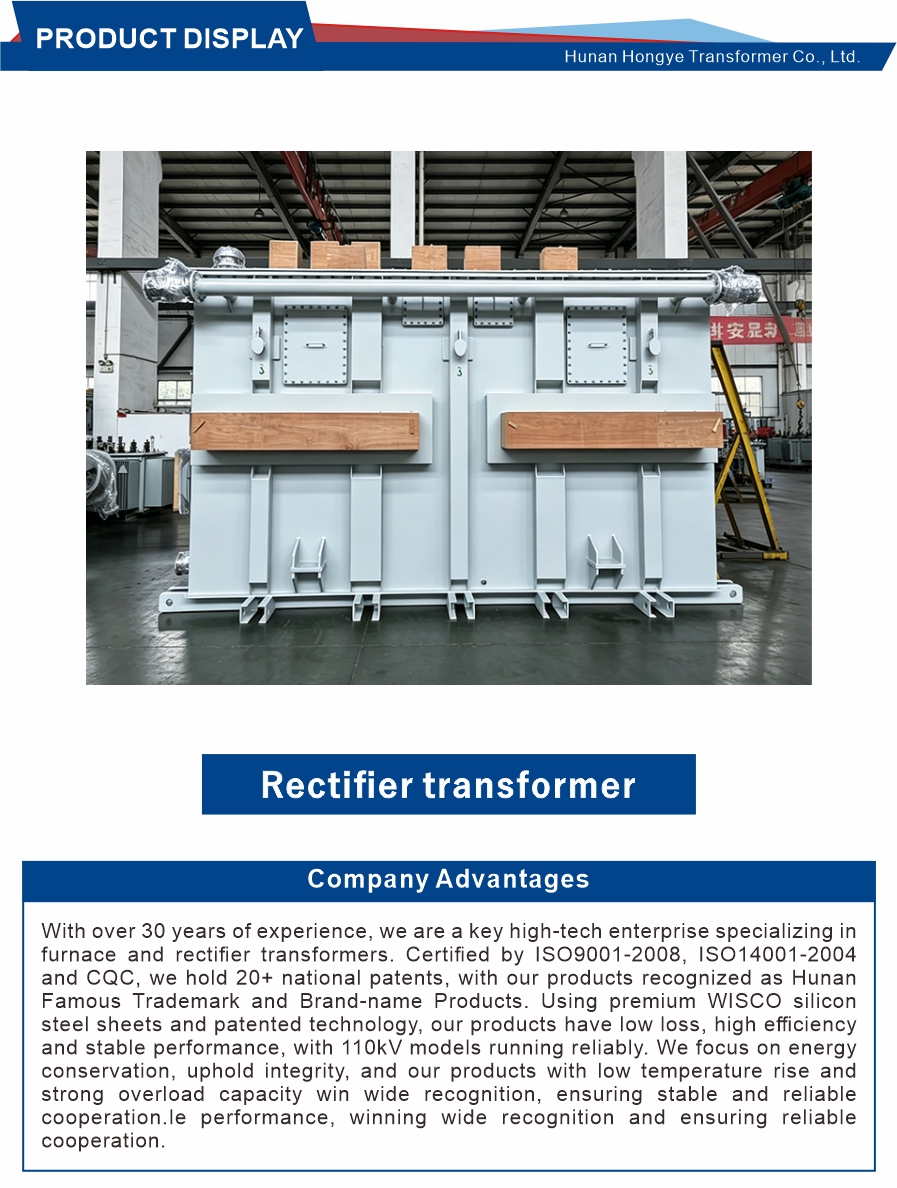

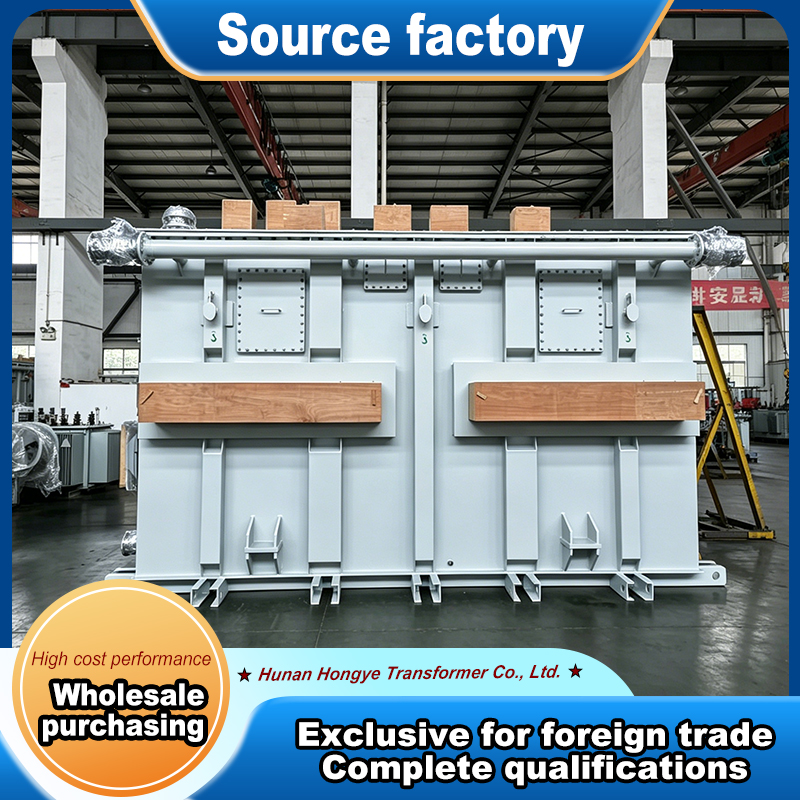

Prefabricated Electrochemical Rectifier Transformer System
